Die Steel TG X5 Cold Working Tool Steel

Application area

Usage :It is suitable for produce cold-pressing die and cold extrusion die

Characteristic :High Strength and Toughness Cold Work Die Steel, it is higher in strength and toughness.compared with Cr12.

Chemical Composition :(%)

C	W	Mo	Cr	V	Mn	Si	P	S
1.25-1.35	Mo+1/2W		7.50-8.50	0.15-0.30	0.10-0.45	0.80-1.00	≤0.030	≤0.020

Hardness :≤255HB

UT standard :

SEP1921,(DEC.84)E/e

Delivery status :

As Hot rolled & forged,delivery condition:annealed

Size :

Flat Bar

Thickness:12mm-80mm

Width:200mm-710mm

Round Bar

2.1mm-400mm

Heat Treatment condition:

Tempering ℃	200℃	400℃	500℃
HRC	60.5HRC	56HRC	55.5HRC

Today our TG can produce & supple other different grade steel as following:　

Grade	GB	DIN	AISI	Form of Supply
钢号	中国牌号		美国牌号	供应类型
1.2080	Cr12	X210Cr12	D3	圆钢/扁钢(Round Bar/Flat Bar)
1.2842	9Mn2V	90MnCrV8	02
1.2510	9CrWMn	100MnCrW4	01	圆钢/扁钢(Round Bar/Flat Bar)
1.2363	Cr5Mo1V	X100CrMo5	A2	圆钢/扁钢(Round Bar/Flat Bar)
1.2343	4Cr5MoSiV1	X38CrMoV5-1	H11	圆钢(Round Bar)
1.2367		X38CrMoV5-3		圆钢(Round Bar)
1.2083		X42Cr13	420	扁钢(Flat Bar)
1.2085		X33CrS16		扁钢(Flat Bar)
1.2311		40CrMnMo7		扁钢(Flat Bar)
1.2738		40CrMnNiMo8-6-1		扁钢(Flat Bar)
1.2714		56NiCrMoV7	L6	圆钢(Round Bar)
1.2767		X45NiCrMo4		圆钢(Round Bar)
1.2357		50CrMoV13-14	S7	圆钢(Round Bar)

Notice:If you have any question for the supplying sizes range of above mentioned,different grade steel,please contact with our sales peoples!Tks! And our TG can develop some other new grade steel of High Alloy according Customer's detail inquiry.　

钢材硬度对照参考表

Hardness Comparison Table


抗拉强度	维氏硬度	布氏硬度	洛氏硬度	抗拉强度	维氏硬度	布氏硬度	洛氏硬度
Rm	HV	HB	HRC	Rm	HV	HB	HRC
N/mm2				N/mm2
255	80	76	-	660	205	195	-
270	85	80.7	-	675	210	199	-
285	90	85.2	-	690	215	204	-
305	95	90.2	-	705	220	209	-
320	100	95	-	720	225	214	-
335	105	99.8	-	740	230	219	-
350	110	105	-	755	235	223	-
370	115	109	-	770	240	228	20.3
380	120	114	-	785	245	233	21.3
400	125	119	-	800	250	238	22.2
415	130	124	-	820	255	242	23.1
430	135	128	-	835	260	247	24
450	140	133	-	850	265	252	24.8
465	145	138	-	865	270	257	25.6
480	150	143	-	880	275	261	26.4
490	155	147	-	900	280	266	27.1
510	160	152	-	915	285	271	27.8
530	165	156	-	930	290	276	28.5
545	170	162	-	950	295	280	29.2
560	175	166	-	965	300	285	29.8
575	180	171	-	995	310	295	31
595	185	176	-	1030	320	304	32.2
610	190	181	-	1060	330	314	33.3
625	195	185	-	1095	340	323	34.4
640	200	190	-	1125	350	333	35.5
1115	360	333	36.6	2030	610	(570)	55.7
1190	370	342	37.7	2070	620	(580)	56.3
1220	380	352	38.8	2105	630	(589)	56.8
1255	390	361	39.8	2145	640	(599)	57.3
1290	400	371	40.8	2180	650	(608)	57.8
1320	410	380	41.8		660	(618)	58.3
1350	420	390	42.7		670		58.8
1385	430	399	43.6		680		59.2
1420	440	409	44.5		690		59.7
1455	450	418	45.3		700		60.1
1485	460	428	46.1		720		61
1520	470	437	46.9		740		61.8
1555	480	447	47.7		760		62.5
1595	490	(456)	48.4		780		63.3
1630	500	(466)	49.1		800		64
1665	510	(475)	49.8		820		64.7
1700	520	(485)	50.5		840		65.3
1740	530	(494)	51.1		860		65.9
1775	540	(504)	51.7		880		66.4
1810	550	(513)	52.3		900		67
1845	560	(523)	53		920		67.5
1880	570	(532)	53.6		940		68
1920	580	(542)	54.1
1955	590	(551)	54.7
1995	600	(561)	55.2

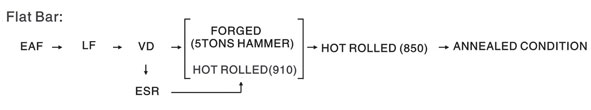

Production engineering
